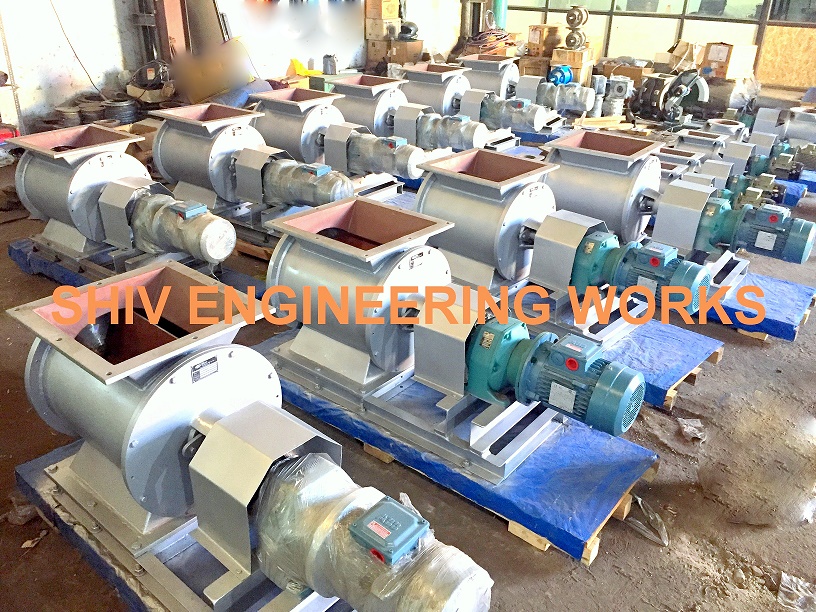

CI Rotary Air Lock Valve

Name: CI Rotary Air Lock Valve
Brand: SHIV ENGINEERING WORKS
Price: 1000 INR
Availability: InStock

Price 1000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CI Rotary Air Lock Valve Specification

Sealing
Neoprene Rubber Seal

Connection
Flanged

Voltage
220V / 415V AC

Size
Customizable (Standard 6 to 16)

Finish
Smooth Surface Finish

Material
Cast Iron

Power
Electrical Watt (w)

Media
Air / Powder / Granules

Temperature of Media
Up to 200C

Port Size
100 mm to 400 mm

Flange
Drilled as per IS / ANSI / DIN Standard

Application
Dust Collection, Pneumatic Conveying, Discharge Feeding

Mounting
Horizontal / Vertical

Drive Type
Direct / Chain Driven

Rotor Speed
15-30 RPM (Typical)

Maintenance
Low Maintenance Design

Weight
Depends on size and configuration

Bearings
High Quality Ball Bearings

Body Type
Heavy Duty, Rigid Construction

Rotor Type
Closed / Open End Rotor with Adjustable Blades

Leakage Prevention
Precision Machined Housing and Rotor

Rotor Material
Cast Iron / Stainless Steel on request

Number of Vanes
8 or as required

CI Rotary Air Lock Valve Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
30 Pieces Per Month

Delivery Time
3 Week

Packaging Details
Wooden boxes and customization also available if required.

Main Export Market(s)
Australia, North America, South America, Western Europe, Middle East, Africa, Central America, Asia, Eastern Europe

Main Domestic Market
All India

About CI Rotary Air Lock Valve

Since our inception in 2005, we are counted among reliable manufacturers and suppliers of CI Rotary Air Lock Valve. The offered valve is designed with precision with the aid of modern machinery and technology installed at our end. The same is available with us in various standard specifications in terms of sizes and dimensions to suit our clients' varied demands. Also, the offered CI Rotary Air Lock Valve is available with us at industry leading price.

Key Features:

Seamless finish
Corrosion proof finishing
Sturdy design

Cast Iron Rotary Air Lock Valve:-

MODEL NO.	INLET/OUTLET	ROTOR SIZE	INLET PCD	HEIGHT
RAVC6	120mm	145mm	175mm	245mm
RAVC8	170mm	195mm	220mm	310mm
RAVC10	220mm	245mm	280mm	362mm
RAVC12	255mm	295mm	310mm	410mm

Superior Rotor and Body Construction

Constructed with a heavy-duty, rigid cast iron body and a customizable rotor (cast iron or stainless steel), this valve ensures durability and strength in demanding environments. Precision machining of both housing and rotor minimizes leakage, delivering reliability for various industries. The robust framework and smooth surface finish facilitate effortless operation and easy integration into new or existing systems.

Versatile Application & Configuration

Designed for efficient handling of air, powder, and granules, this rotary air lock valve supports processes in dust collection, pneumatic conveying, and controlled discharge feeding. It accommodates customizable sizes, flange types as per IS/ANSI/DIN standards, and offers flexibility in mounting orientation and drive type to meet specific operational requirements.

FAQ's of CI Rotary Air Lock Valve:

Q: How does the CI Rotary Air Lock Valve prevent media leakage during operation?

A: Leakage is minimized by employing precision machined housing and rotor components, enhanced further by neoprene rubber seals. This design ensures a tight seal and reliable delivery of air, powders, or granules without loss of media.

Q: What materials and media can this rotary valve handle effectively?

A: The valve is constructed from high-grade cast iron, and the rotor can be supplied in either cast iron or stainless steel. It is suitable for handling air, powders, and granules at temperatures up to 200C, making it ideal for a range of industrial applications.

Q: When should I opt for an open versus a closed end rotor with adjustable blades?

A: Choosing between an open or closed end rotor depends on the material you're conveying and the desired flow characteristics. Open end rotors are used for free-flowing materials, while closed end rotors offer better control and sealing for finer or dustier media.

Q: Where can this rotary air lock valve be installed in my process?

A: This valve is designed for versatile mounting-either horizontally or vertically. It can be integrated at discharge points of hoppers, silos, or at points in dust collection and pneumatic conveying systems, depending on your specific process needs.

Q: What is the process for adjusting the number of vanes or rotor speed?

A: The valve features a standard 8 vane rotor but can be customized as needed. Rotor speed is typically set between 15-30 RPM but can be further adjusted to suit material flow requirements and process preferences.

Q: How does the design ensure low maintenance requirements?

A: The heavy-duty construction, high-quality ball bearings, and smooth surface finish all contribute to reduced wear and tear. Additionally, the precision fit components and robust sealing provide longer intervals between routine maintenance activities.

Q: What are the primary benefits of using this valve in dust collection or pneumatic applications?

A: Key benefits include efficient, leak-free transfer of materials, versatility in handling various media types, adaptability to different mounting and drive configurations, and low overall maintenance, ensuring high reliability and operational efficiency.
