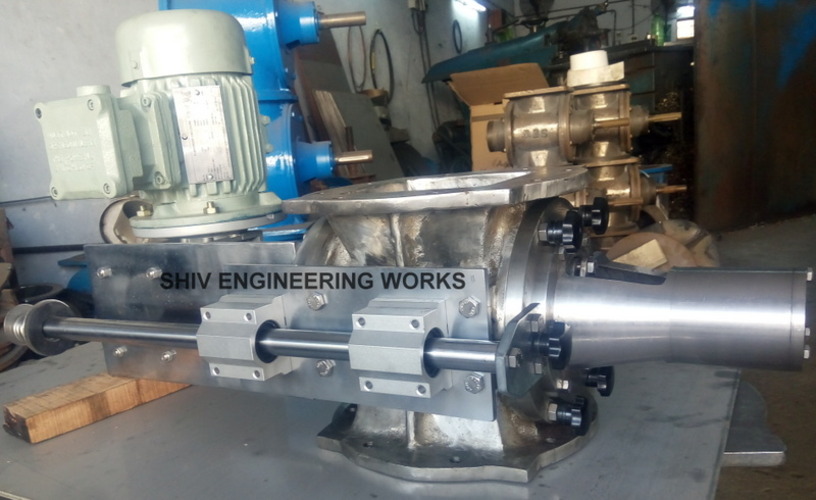

Stainless Steel Rotary Airlock Valves

Name: Stainless Steel Rotary Airlock Valves
Brand: SHIV ENGINEERING WORKS
Price: 1000 INR
Availability: InStock

Price 1000 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Stainless Steel Rotary Airlock Valves Specification

Connection
Flanged

Size
Customizable as per requirements

Sealing
Air Tight Rotary Seal

Finish
Mirror/Matte Finish

Voltage
220V/380V

Material
Cast Iron

Power
0.5 HP to 3 HP (depending on model)

Media
Air, Bulk Solids, Powders, Granules

Temperature of Media
-10C to 200C

Port Size
100 mm to 500 mm

Flange
Round/Square Flange as per design

Application
Pneumatic Conveying, Dust Collection Systems, Feeding, Metering

Number of Vanes
6 to 8 (Standard)

Lubrication
Grease Packed

Capacity
5 m3/hr to 80 m3/hr

Rotor Types
Open/Closed Rotor

Maintenance
Easy Clean/Quick Release Option Available

Surface Treatment
Anti-Corrosive Treatment

Body Thickness
Up to 20 mm depending on size

Drive Type
Direct/Belt Driven

Bearing Type
Heavy Duty Ball Bearings

Operating Pressure
Up to 1 Bar

Stainless Steel Rotary Airlock Valves Trade Information

Minimum Order Quantity
1 Set

Supply Ability
30 Sets Per Month

Delivery Time
3 Week

Packaging Details
Wooden boxes and customization also available if required.

Main Export Market(s)
Africa, Western Europe, Middle East, North America, South America, Eastern Europe, Asia, Australia, Central America

Main Domestic Market
All India

About Stainless Steel Rotary Airlock Valves

Catering to the demands of clients as a manufacturer and supplier, we are engaged in offering a wide range of Stainless Steel Rotary Airlock Valves. Remaining in accordance with the industry set norms and guidelines, the offered valves are manufactured with perfection by our team of engineers. The offered valves are available in different specifications as per our clients requirements. These Stainless Steel Rotary Airlock Valves are checked by our team of quality controllers to ensure high functionality.

Key Features:

Corrosion resistance
High strength
Robust construction

Rotary Air Lock Valves:-

CASTED RAV SS304

MODEL NO.	INLET/OUTLET	ROTOR SIZE	INLET PCD	HEIGHT
RAVS6	120mm	145mm	175mm	245mm
RAVS8	170mm	195mm	220mm	310mm
RAVS10	220mm	245mm	280mm	362mm
RAVS12	255mm	295mm	310mm	410mm

CASTED RAV SS316

MODEL NO.	INLET/OUTLET	ROTOR SIZE	INLET PCD	HEIGHT
RAVSS6	120mm	145mm	175mm	245mm
RAVSS8	170mm	195mm	220mm	310mm
RAVSS10	220mm	245mm	290mm	362mm
RAVSS12	255mm	295mm	310mm	410mm

Superior Performance in Material Handling

Designed for efficient and reliable transfer of air, powders, granules, and bulk solids, our rotary airlock valves support capacities ranging from 5 m3/hr to 80 m3/hr. Heavy-duty ball bearings and body thickness up to 20 mm guarantee strength and long service, even under continuous operation and fluctuating pressures up to 1 Bar.

Customizable Configurations for Every Process

Choose from direct or belt drive types, various rotor styles, and number of vanes (6 to 8 standard) to meet specific process needs. Options like round or square flanges, variable port sizes (100 mm to 500 mm), and flexible finishes ensure easy integration with your existing pneumatic conveying or dust collection systems.

Engineered for Durability and Easy Maintenance

Each valve features anti-corrosive treatment and robust CI construction, supporting temperatures between -10C and 200C. The easy clean/quick release options and grease-packed lubrication reduce downtime and maintenance costs, making them ideal for continuous industrial applications.

FAQ's of Stainless Steel Rotary Airlock Valves:

Q: How do I select the appropriate rotary airlock valve model for my application?

A: Selection depends on your required capacity (5 m3/hr to 80 m3/hr), the type of media (air, powders, granules), process pressure (up to 1 Bar), size of port (100 mm to 500 mm), and temperature range (-10C to 200C). Consult with our engineering team to match the specifications to your plant's needs.

Q: What are the advantages of open versus closed rotors?

A: Open rotors are ideal for handling larger particles and less cohesive materials, ensuring smooth flow and reducing blockages. Closed rotors provide a superior air seal and are better for finer or dusty materials, enhancing airlock efficiency in pneumatic conveying and dust collection applications.

Q: When is it beneficial to use the quick release or easy clean option?

A: The quick release/easy clean feature is recommended when frequent cleaning or material changeover is necessary, such as when handling abrasive, sticky, or food-grade materials. This minimizes downtime and simplifies maintenance.

Q: Where can these rotary airlock valves be installed?

A: These valves are widely used across industries for pneumatic conveying, feeding, metering, and dust collection systems. They can be integrated wherever controlled material transfer and an air-tight seal are required, in facilities ranging from food processing to cement and chemical manufacturing.

Q: What is the process to maintain the rotary airlock valves?

A: Valves are designed for minimal maintenance. Grease-packed heavy-duty ball bearings and anti-corrosive treatments extend operational life. Regular inspection for wear, lubrication levels, and periodic cleaning (especially if using the quick-release option) ensure maximum efficiency.

Q: How does the anti-corrosive treatment benefit valve longevity?

A: Anti-corrosive surface treatment protects the valve from chemical attack and rust, particularly important for moisture-prone or aggressive industrial environments. This enhances service life and reduces the need for frequent replacements.
